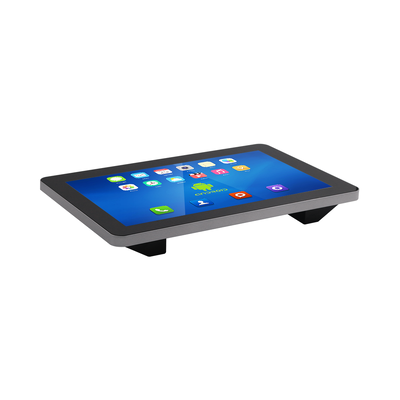

15.6'' Fanless Zero Bezel PCAP Touch Panel PC With Android, High Brightness, Optical Bonding, Anti-glare, Anti-reflective, Anti-finger, Anti-UV

  • 15.6'' Fanless Zero Bezel PCAP Touch Panel PC With Android, High Brightness, Optical Bonding, Anti-glare, Anti-reflective, Anti-finger, Anti-UV
Luogo di origine Cina
Marca ITD/OEM
Certificazione CE, FCC, RoHS Compliance
Numero di modello ITD156PPCT5KEx
Quantità di ordine minimo 1 pezzo
Prezzo TBA
Imballaggi particolari 1-5pcs/CTN, sicuro, costante
Tempi di consegna 10 giorni lavorativi
Termini di pagamento T/T,Paypal
Capacità di alimentazione 10000 pezzi al mese
Dettagli
Tipo delle cellule/superficie di vetro TFT Colori indigeni di risoluzione 1920×1080
Tempo di risposta 25 ms Angolo di visione (tipico) 85/85/85/85
Sorgente luminosa Lampadina del LED con la vita 50000hours' Memoria 2 GB; 4GB/8GB Opzionale
Evidenziare

15.6 inch fanless touch panel PC

,

high brightness optical bonding PC

,

anti-glare touch panel computer
Lasciate un messaggio
Descrizione di prodotto

The ITD 15.6” Multi-Touch HMI Comfort Zero-Bezel Fanless Panel PC is a fully integrated, high-performance solution designed for modern industrial and interactive applications. It is powered by a robust ARM-based processor or x86 Intel® CPU, combined with advanced Projected Capacitive Touch technology, all seamlessly embedded into an industrial-grade LCD panel. Designed with a fanless architecture, this panel PC ensures silent operation, reduced maintenance, and enhanced long-term reliability—making it ideal for harsh, dust-prone, and continuous-operation environments. The absence of cooling fans minimizes the risk of mechanical failure and prevents dust ingress, significantly improving system durability. Featuring a sleek, flat, and true zero-bezel front surface, the device delivers a premium aesthetic while enabling easy cleaning and superior front-panel protection. The PCAP touch technology supports precise 10-point multi-touch, ensuring smooth, intuitive, and reliable user interaction—even in demanding and complex operational scenarios. Engineered for versatility and stability, the ITD Multi-Touch HMI Comfort Fanless Panel PC is perfectly suited for a wide range of applications, including industrial automation, smart kiosks, digital signage, and IoT-based systems.



FEATURES

• True Flat, Zero-Bezel Front Design – Easy-to-clean seamless surface eliminates dust and debris accumulation around edges and corners, ensuring hygienic and low-maintenance operation

• Industrial-Grade Reliability for HMI/SCADA – Flexible, open-platform architecture supports a wide range of industrial applications with stable and long-term performance

• Advanced 10-Point PCAP Multi-Touch – Highly responsive and precise touch performance with support for light-touch operation, enabling smooth and intuitive user interaction

• Optimized Power Efficiency – Fanless architecture combined with energy-efficient design reduces power consumption while maintaining stable performance, making it ideal for continuous 24/7 operation

• Front Panel IP65 / NEMA 4 Protection – Robust sealed front design protects against water, dust, and harsh environmental conditions

• Rugged Aluminum Frame & Steel Rear Housing – Precision aluminum framing provides structural reinforcement along the edges, while the robust steel rear housing ensures excellent strength, heat dissipation, and long-lasting reliability in demanding industrial environment

• Flexible Customization Options – Supports various configurations including CPU platforms, interfaces, brightness levels, and mounting solutions to meet specific project requirements

• Compliance & Certification – CE, FCC, and RoHS certified, ensuring safety, environmental compliance, and global market acceptance



OPTIONALS



• Anti-Glare / Anti-Reflective, Anti-finger, Anti-UV • Optical Bonding, High Brightness
• Web Camera, Speakers, RFID, NFC, Fingerprint, QR Reader, Thermal Printer, etc. • WIFI,  4G/5G, Bluetooth, GPS
• VESA Mount, Desktop Stand • DC 24V, DC9-36V, AC100-240V,  PoE



DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 15.6”/16:9
Active Area/ Pixel Pitch 344.16(H) ×193.59(V)mm/0.17925 × 0.17925mm
Native Resolution/ Colors 1920×1080/16.2M
Brightness/ Contrast 300cd/㎡(500~1500 cd/㎡optional)/1000:1
Response Time/ Viewing Angle(Typical) 25ms/85/85/85/85
Light Source LED Backlight with 30000Hours’Lifetime



SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588/RK3576 optional) Intel® Celeron J1900/J6412 2.0GHz Intel® Core i3/i5/i7 (4th~12th Generation or newer optional)
Chipset Rockchip Intel Bay Trail SoC Intel SoC Chipset
Memory 2GB; 4GB/8GB Optional Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB, DDR4 SODIMM×1(Intel J4125/J6412)  2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.); DDR5 (optional≥12th gen.)
Storage 8GB: 16GB/32GB/64GB Optional 1×mSATA/1×SATA/1×M.2 1×mSATA/1×SATA/1×M.2
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB
OTG(Optional); 1 × COM(Optional);
1 × TF Card Support 8~128GB

1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB
2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662
Line-Out /MIC IN





1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB
2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662
Line-Out /MIC IN


LAN 1 x 10/100/1000Mbps Ethernet 1× 10/100/1000Mbps Ethernet( Dual LAN optional)  1× 10/100/1000Mbps Ethernet( Dual LAN optional)
OS



GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 15~35W
Environment Considerations Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%



15.6'' Fanless Zero Bezel PCAP Touch Panel PC With Android, High Brightness, Optical Bonding, Anti-glare, Anti-reflective, Anti-finger, Anti-UV 015.6'' Fanless Zero Bezel PCAP Touch Panel PC With Android, High Brightness, Optical Bonding, Anti-glare, Anti-reflective, Anti-finger, Anti-UV 1












15.6'' Fanless Zero Bezel PCAP Touch Panel PC With Android, High Brightness, Optical Bonding, Anti-glare, Anti-reflective, Anti-finger, Anti-UV 2
